Activity
Accessories:
|
Activity Wheel Monitor USB Interface, Model 86056A
The Activity Wheel Monitor USB Interface Model 86056A may be used with Activity Wheel Counters 86060 and 86061, as well as with Model 86070 Counter/Controller. It replaces both the 86056 Serial Starter Interface and the 86057 Serial Expansion Interface. It is no longer necessary to daisy chain expansion boxes to the starter interface. Each interface can connect directly to the computer.
Connect up to 15 wheel counters to a single interface and up to 8 interface units to a single computer with high-speed USB ports. Any powered USB hub may be used as needed. The maximum data collection capacity of the AWM Software is 120 wheels. The Model 86065 AWM Software package must be ordered separately. Upgrade pricing is available to existing users of older software.
|
 |
ACTIVITY WHEEL MONITOR SOFTWARE Model 86065
AWM Version 7.7 is an example of a great product being made even better. This version was written to support the new USB wheel interface, model 86056A, any device (motor, brake, aux.) that can be controlled via the 86070 Counter/Controller, and all new forced exercise/walking beds with built in USB interface. At the same time it is still compatible with all serial port interfaces currently running on the 86056 & 86057 Interface System. Just a few of the new features and improvements are highlighted below. Contact Lafayette Instrument Co for new equipment purchase or existing equipment upgrades.
|
 |
Model
86060 Activity Wheel Counter
|
|
The
Activity Wheel Counter Model 86060 is used to monitor
the revolutions of the Single Mouse Activity Wheel Model
80820, Single Rat Activity Wheel Model 80850, or the
Single Rat Activity Wheel Model 86043. The Activity
Wheel Counter Model 86060 uses an optical sensor to
detect the total revolutions of the wheel. For data
collection from the Activity Wheel Counter Model 86060
to a computer, the Animal Wheel Monitor Starter
Interface Model 86056 must be used. The Animal Wheel
Monitor Starter Interface Model 86056 will provide power
and a serial port computer connection. Up to (15)
Activity Wheel Counters Model 86060 may be connected to
the Animal Wheel Monitor Starter Interface Model 86056.
The Activity Wheel Counter
Model 86060 provides standalone operation with a 12V
power pack with battery backup and an LCD display.
When battery backup power is used, battery life is two
days.
|
 |
|
|
Specifications: |
| Power: |
|
| Battery Type: |
(2) 2/3A Lithium 3VDC |
| Battery Life: |
48 hours of back-up
life, un-used life is 5 year |
| Total Revolutions: |
Unlimited - counter rollover value at 9,999,999 |
| External Interface: |
RS-232C interface to
computer through Animal Wheel Monitor Starter
Interface Model 86056. 19,200 baud, no parity,
8 data bits, 1 stop bit |
| Dimensions: |
2.5" x 4.3" x 1.5" |
|
Weight: |
9.6 ounces |
|
Model
86061 Computer
Controlled Activity Wheel Counter
|
|
 |
Description:
The 86061 Activity Wheel Counter is used
to monitor the revolutions of the 80820 Single Mouse
Activity Wheel, 80850 Single Rat Activity Wheel, or the
86043 Single Rat Activity Wheel. The 86061 counter uses
optical sensors to detect the total revolutions of the
wheel. For collection of data from the 86061, the 86056
AWM Starter Interface must be used. The 86056 will
provide power and a serial port computer connection. |
|
Specifications: |
| Power: |
|
| Total Revolutions: |
Unlimited - counter rollover value at 9,999,999 |
| External Interface: |
RS-232C interface to
computer through Animal Wheel Monitor Starter
Interface Model 86056 no parity, 8 data bits, 1
stop bit |
| Dimensions: |
1.7"
x 3.4" x 1.5" |
|
Weight: |
4.5
ounces |
|
Activity Wheel Counter, Model 86070
The Model 86070 Activity Wheel Counter/Controller is used to monitor and control the revolutions of Lafayette Instrument Co. Activity Wheels. The Model 86070 uses optical sensors to detect the total revolutions of the wheel. The Model 86070 Counter/Controller can be used with electronic accessories for brake and/or motor control of the activity wheel. |
 |
|
Activity Wheel Brake, Model 86070-B1
The Model 86070-B1 Lafayette Activity Wheel Brake is used as an on/off and variable resistance brake for the Lafayette activity wheels. The Activity Wheel Brake is controlled through the Activity Wheel Counter Model 86070, and is used in applications to impede an animal’s ability to run. When used in conjunction with the Lafayette Activity Wheel Software Model 86065 and Starter Interface Model 86056, the Activity Wheel Brake can be programmed to activate and deactivate upon the users’ request. |
 |
|
|
|
Model 80806 Rat Exercise/Walking Wheel
|
|
|
Features:
|
- Wheels are 4.4" internal width with an internal
running diameter of 13.38"
- Wheels are lightweight yet sturdy
- Wheel sides are polycarbonate plastic with
riveted anodized aluminum round rungs
- Thumbscrew locking swing hatch is made from
anodized aluminum
- Access for animal loading and removal is 6.5"
|
|
|
Specifications: |
|
Weight: |
3.5lbs. |
|
Wheel Diameter: |
13.38" ID |
|
Wheel Diameter: |
14.19" OD |
|
Wheel Width: |
4.4" (internal) |
|
Wheel Width: |
4.9" (external) |
|
|
|

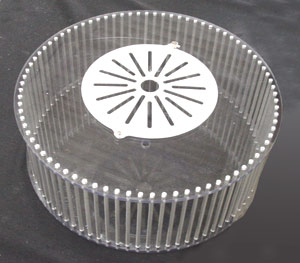

Model 80801 Mouse Exercise/Walking Wheel
|
|
|
Features:
|
- Wheels are 2.25"
internal width with an internal running diameter of
6"
- Wheels are
lightweight yet sturdy
- Wheel sides are
polycarbonate plastic with riveted anodized aluminum
round rungs
- Thumbscrew locking
swing hatch is made from anodized aluminum
- Access for animal
loading and removal is 4"
|
|
|
Specifications: |
|
Weight: |
0.8lbs. |
|
Wheel Diameter: |
5.94"
ID |
|
Wheel Diameter: |
6.75" OD |
|
Wheel Width: |
2.25"
(internal) |
|
Wheel Width: |
2.75" (external) |
|
|
Model
86056 Activity
Wheel Monitor Starter Interface |
|
|
This Activity Wheel Monitor Starter
Interface (model 86056) provides a computer connection
for up to 15 Dual Activity Wheel Chambers (80830) or
Activity Wheel Counters (86060 and 86061). The
counters connect through 6-pin modular cables to the
starter interface, which connects to the computer
through a serial communications port. The starter
interface may be expanded with an Activity Wheel
Monitor Expander Interface to support an
additional 15 counters per expander interface. Up to
seven expander interfaces can be connected to the
Starter Interface to accommodate a maximum of 120
counters or 120 Dual Activity Wheel Chamber Systems
(80830). This starter interface includes a software
program to download the information from the counters
at regular intervals over a specified period of time. |
|
Software
Features:
-
Compatible
with Windows® 95/98/NT/2000
-
Allows
the user to collect activity information
from up to 240 activity wheels.
-
Activity
time bins from 10 seconds to 1 hour
-
Total
collection time up to 200 hours
-
ASCII
text file data output
|
|
Specifications: |
| Power: |
12VDC
Supply (Included) |
| #
of Counters: |
15 |
| External Interface: |
RS-232C
interface to computer 19200 baud, no parity, 8
data bits, 1 stop bit |
| Dimensions: |
3.9"
x 9.0" x 1.6" |
|
Weight: |
1.6lbs. |
|
|
Expander
Interface
|
|
|
|
|
Specifications: |
| Power: |
12VDC
Supply (supplied by Model 86056) |
| #
of Counters: |
15 |
| External Interface: |
RS-232C
interface to computer through 86056 interface
19200 baud, no parity, 8 data bits, 1 stop bit |
| Dimensions: |
2.3"
x 9.0" x 1.7" |
|
Weight: |
1.2lbs. |
|
|
|
|
|
|
|
|
|
|
