SmartFrame Cage Rack
System |
|
The SmartFrame
Cage Rack System has been designed with advanced features and
ease-of-use as the primary objective. Frames come standard with a two
dimensional 4 x 8 beam grid for optimum coverage, not just a few beams
in only one dimension. And its high resolution comes at no extra cost!
The SmartFrame tracks motor activity extremely well for
both rat and mouse applications and can serve as a very cost effective
Open Field System for mice. It uses the Windows NT/2000 compatible
MotorMonitor software, providing greater flexibility in
analyzing data. The advanced diagnostics use an exclusive 4-level test
which runs automatically before each session. Named the
SmartFrame because of its onboard intelligent circuits, it
dramatically enhances validation and diagnostic efforts. Each
SmartFrame station operates through a single cable from the
station to the control chassis, regardless of beam configuration or
options. This makes for an exceptionally clean connection setup and
eliminates the "rats nest" of cables. |
|
"A Cage Rack
System with higher resolution as a standard!" |
On-board diagnostic indicators at each station. |
|
Features:
Windows NT/2000 platform
12 Infrared
PhotoBeams (4 X & 8 Y)
Individual start
button at each station
Automatic 4 level
diagnostics
Maximum Stations 32
Computer Interface -
a single RS232 Serial Port
User Definable Zones
- not factory restricted
Post Processing
Analysis
Session Templates
Individual Runtime
Clocks for each station
User selectable
output measures.
Optional Advanced
Graphic Comparators
-HotSpots, Playback &
OverTime |
 |
|
Hardware
Specifications:
Computer
Requirements: IBM PC compatible with Windows NT/2000,
Pentium 133 MHz processor, 512 MB RAM, SVGA monitor, 50 MB of free
hard disk space
Power:
90-240 Vac 50-60 Hz
Overall Dimensions:
14.4" (36.58 cm) wide x 23.75" (60.33 cm) long x 0.83" (2.11 cm)
Internal Frame
dimensions: 9.5" (24.13 cm) wide x 18.0" (45.72 cm) long
Maximum number of
stations: 32
PhotoBeams:
Infrared PhotoBeams with 4 X and 8 Y resolution
Housing:
Brushed stainless steel
Computer Interface:
a single RS232 serial port, regardless of the size of the system!
Frame Front Panel:
Momentary push button start switch (3 second lock out.) Diagnostic
LEDS: 12 green activity LEDS. 4 yellow status
LEDS:
Switch, rearing, normal mode and float mode |
|
Measures:
X Ambulations Y Ambulations
Fine Movements Total Breaks
Time in Zone
Entries into Zone Pokes into Zone
Distance
Time @ Rest
Time Active Rearing |
|
Ordering Information:
HMM100
MotorMonitor software and control
chassis
HSF4x8
Horizontal Frame
HSF4x8R
Rearing Frame
HMM100-OPT
HotSpots Graphic Comparator
HMM200-OPT
OverTime Graphic Comparator
HMM300-OPT
Playback Module |
|
|

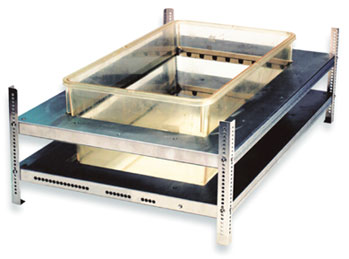

SmartFrame High
Density Cage Rack System |
|
The
SmartFrame High Density Cage Rack System has been designed with
the same advanced features and ease-of-use as our standard Cage Rack
System. Frames come standard with a two-dimensional 7 x 15 beam grid
for greater resolution; specifically engineered to capture mouse
fine-motor activity in an open-field task. The SmartFrame
tracks motor activity extremely well for both rat and mouse
applications and is ideal for paradigms such as place preference for
mice. It uses the Windows NT/2000 compatible MotorMonitor
software common to our activity line, providing greater flexibility in
analyzing data. The
advanced diagnostics use an exclusive 4-level
test which runs automatically before each session. Named the
SmartFrame because of its onboard intelligent circuits, it
dramatically enhances validation and diagnostic efforts. Each
SmartFrame station operates through a single cable from the
station to the control chassis, regardless of beam configuration or
options. This makes for an exceptionally clean connection setup and
eliminates the "rats nest" of cables. |
|
On-board diagnostic indicators at each station |
 |
|
Features:
Windows NT/2000 platform
22 Infrared
PhotoBeams (7 x & 15 y)
Individual start
button at each station
Automatic 4 level
diagnostics
Maximum Stations 24
Computer Interface -
a single RS232 Serial Port
User Definable Zones
- not factory restricted
Post Processing
Analysis
Session Templates
Individual Runtime
Clocks for each station
User selectable
output measures.
Optional Advanced
Graphic Comparators
HotSpots
, Playback & OverTime
|
 |
|
|
|
Hardware
Specifications:
IBM PC compatible with Windows NT/2000, Pentium 133 MHz processor,
512 MB RAM, SVGA monitor, 50MB of free hard disk space.
Power: 90-240 Vac
50-60 Hz
Overall Dimensions:
14.4" (36.58 cm) wide x 23.75" (60.33 cm) long x 0.83" (2.11 cm)
Internal Frame
dimensions: 9.5" (24.13 cm) wide x 18.0" (45.72 cm) long.
Maximum number of
stations: 24
PhotoBeams: Infrared
PhotoBeams with 7 x and 15 y resolution.
Housing: Brushed
stainless steel.
Computer Interface: a
single RS232 serial port, regardless of the size of the system!
Frame Front Panel:
Momentary push button start switch (3 second lock out.) Diagnostic
LEDS: 22 green activity LEDS. 4 yellow status LEDS: Switch, rearing,
normal mode and float mode.
|
|
Measures:
X Ambulations Y Ambulations
Fine Movements Total Breaks
Time in Zone
Entries into Zone Pokes
into Zone Distance
Time @ Rest
Time Active
Rearing |
|
Ordering Information:
HMM100 MotorMonitor
software and control chassis
HSF7x15 7x15 Beam High
Density Cage Rack Station
HSFCRHDR High Density
Rearing Frame
HMM100-OPT HotSpots
Graphic Comparator
HMM200-OPT OverTime
Graphic Comparator
HMM300-OPT Playback
Module |
|
|
|
|
|
|
|
|
|
|
