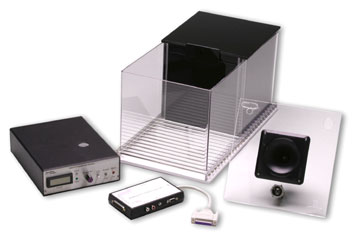

Cued & Contextual Fear Conditioning Systems

Our Cued & Contextual Fear Conditioning System is actually made up from our MotorMonitor High Density Cage Rack System and a set of options which enable the user to administer a variety of stimuli including shock, tone, and cue lights. During the training day, a set of simple commands pairs the shock with the cues and invokes a freezing behavior from the subject. On the following day the subject is tested without the foot shock to see if the subject has "remembered" the pairing. The system comes with our new 7 x 15 beam High Density Cage Rack System which has been designed especially for mice. Additionally supplied is our new fully programmable shocker which has the industry’s first grid leak detection circuit for ensuring proper shock administration.

"Specially Designed for Mice"
Detailed Information:
Features: • Windows^® NT/2000/XP platform • 12 Infrared PhotoBeams (4 X & 8 Y) • Individual start button at each station • Automatic 4 level diagnostics • Maximum Stations 32 • Computer Interface - a single RS232 Serial Port • User Definable Zones - not factory restricted. • Post Processing Analysis • Session Templates • Individual Runtime Clocks for each station • User selectable output measures. • Optional Advanced Graphic Comparators - HotSpots, Playback & OverTime	Measures: • X Ambulations • Y Ambulations • Fine Movements • Total Breaks • Time in Zone • Entries into Zone • Pokes into Zone • Distance • Time @ Rest • Time Active • Rearing
Hardware Specifications: Computer Requirements: IBM PC compatible with Windows NT/2000, Pentium 133 Mhz processor, 512 MB RAM, SVGA monitor, 50 MB free hard disk space. Power: 90-240 Vac 50-60 Hz Overall Dimensions: 14.4" (36.58 cm) wide x 23.75" (60.33 cm) long x 0.83" (2.11 cm) high. Internal Frame dimensions: 9.5" (24.13 cm) wide x 18.0" (45.72 cm) long. Maximum number of stations: 32 PhotoBeams: Infrared PhotoBeams with 7 x and 15 y resolution. Housing: Brushed stainless steel. Computer Interface: a single RS232 serial port, regardless of the size of the system! Frame Front Panel: Momentary push button start switch (3 second lock out.) Diagnostic LEDS:12 green activity LEDS. 4 yellow status LEDS: Switch, rearing, normal mode and float mode.
Ordering Information: HMM100 MotorMonitor software and control chassis HSF7x15 7x15 Beam High Density Cage Rack Station HFC1000 Fear Conditioning Option HLD1000 Light/Dark Option for SF4X8S HLD2000 Light/Dark Option for SF1616S HPP2000 Place Preference Option for Cage Rack (SFCRHD)
