| Model

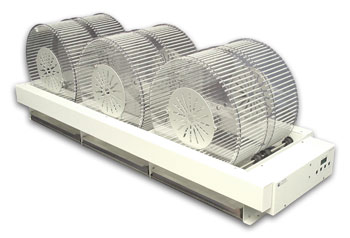

80805 RAT FORCED EXERCISE/WALKING WHEEL SYSTEM
Shown here with Rat Walking
Wheel - Model 80806)
|
|
The Forced Exercise/Walking
Wheel System for Rats Model 80805 is designed to offer
flexibility in conducting paradigms such as sleep deprivation and forced
exercise. The sturdy exercise/ walking bed will support
up to (6) Rat Exercise/Walking Wheels Model 80806 and
incorporates removable waste pans. The wheels
incorporate a swing-hatch for easy animal loading and
removal. The wheels rest on individual tracks with
cushioned non-slip grips. The LCD interface allows the
user to set the exercise/walking speed and the total
exercise time. |
 |
|
|
Features: |
-
Supports 1 - 6 wheels at a
time
-
Each wheel is captured in its
own running track
-
Each wheel is supported on
cushioned non-slip grips
-
System has a variable speed
range
-
Three removable stainless
steel waste pan
-
Wheels can be added or removed
while operating
-
System has rubber feet or can
be permanently mounted to a flat surface or
workbench
-
System is easily disassembled
for cleaning
-
Water support for each animal
may be added
|
|
Specifications: |
|
Power: |
15VDC, 4.6A Power Pack (included) |
|
Dimensions: |
51.0"
x 17.9" x 16.9" (with wheels) |
|
Weight: |
20.0lbs. (empty),
41.0lbs. (with 6 wheels) |
|
Wheel Diameter: |
13.38"
ID |
|
Wheel Width: |
4.4" ID |
|
Run Distance: |
1.07
meters/revolution |
|
Speed Range: |
1.0 - 28.0
meters/minute |
|
Exercise Time Range: |
1 - 999 minutes |
|
80806
|
Model 80806 Rat Exercise/Walking Wheel
|
|
|
Features:
|
- Wheels are 4.4" internal width with an internal
running diameter of 13.38"
- Wheels are lightweight yet sturdy
- Wheel sides are polycarbonate plastic with
riveted anodized aluminum round rungs
- Thumbscrew locking swing hatch is made from
anodized aluminum
- Access for animal loading and removal is 6.5"
|
|
|
Specifications: |
|
Weight: |
3.5lbs. |
|
Wheel Diameter: |
13.38" ID |
|
Wheel Diameter: |
14.19" OD |
|
Wheel Width: |
4.4" (internal) |
|
Wheel Width: |
4.9" (external) |
|
| |
|
|
|
|
|
|
|
|
|
