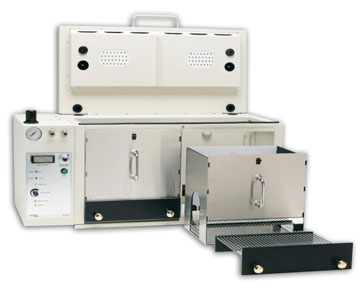

Learning & Memory System  HLM100
Our Learning and Memory System sets the industry standard for versatility and design. With the ability to perform a multitude of paradigms, this system can easily adapt to your changing research needs. With an impressive set of design features found on no other system currently available, the HLM100 provides the level of confidence needed for the most demanding laboratory environments.
Impressive Paradigm List

  • Active Avoidance

  • Single Trial Passive Avoidance

  • Multi-trial Passive Avoidance

  • Trials to Criterion*

  • Step Down Avoidance*

  • Cued/Contextual Fear Conditioning*

  • Three Compartment Place Preference for Mice*

  • Freeze Monitoring*

  • Motor Activity Monitoring*

          * Under Development





Learning & Memory Features & Functions

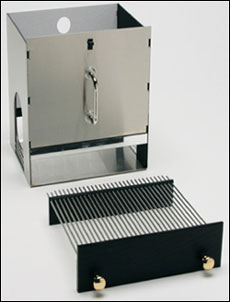

Stainless Steel Animal Compartments & Electronics-Free Grid Floor

Designed with the user in mind, there are no electronics in the animal compartments. The entire unit can be removed and placed in a cagewash or autoclave for effortless cleaning!



Shock

This innovation finally provides a solution to truncated shock. When animals receive shock they will inevitably discharge much fluid and excrement. When this occurs there is frequently a resulting coating that will develop between shock grids. This coating can easily truncate some of the shock away from the subject, which of course will confound the data. To solve this problem we have built a unique testing circuit that helps you test for the condition and resolve it prior to running studies.

LED Position Indicators

Designed into our system are 16 position indicator LEDs. This feature makes monitoring subject position effortless. The LEDs are bright and easily readable from a distance.

Modular Service Pack

Virtually all of the Learning & Memory Station's controls and electronics are contained in the service pack.



Fully Ventilated Enclosure

Optional Video Cameras

Monitor subject behavior without disturbing the session! An excellent tool for validation. Keep a constant eye on animal behavior or record sessions for later playback.

Variable Intensity House Lights

This LED array provides enough output to be used for an alternate UCS.



Color Programmable Walls

Single Trial Passive Avoidance has long had the problem of First Trial Crossing Failure. The failure of the subject to cross to the dark side on its. first exposure to the enclosure greatly puts into question the use of that animal in the data. By using these programmable wall colors and other Hamilton-Kinder unique enclosure designs you be able reduce the impact of this common problem.

Ultra-Quiet Programmable Gate





Optional Air UCS

Use as an alternative to shock.

Air Pressure Adjust

Air Pressure gauge

Quick disconnect air hose connections

Excellent for Both Passive & Active Tests

The software in our MotorMonitor system has been so well received that we have used the same approach in developing our new Learning & Memory system. Easy to use input screens provide the user with the features and flexibility to get the job done.

Hardware Specifications:

• Windowsฎ NT/2000/XP

• Maximum Stations: 8

• Power Input: 100-240 Vac ~, 6.0A, 47-63 Hz

• Overall Footprint: Depth: 15.7" (39.88 cm)

       Width: 27.25" (69.22 cm)

       Height: 14.06" (35.71 cm)

• Subject Arena for each side:

       Depth: 8" (20.32 cm)

       Width: 10" (25.4 cm)

       Height: 8" (20.32 cm)

• Construction: Powder-Coated Steel

• Grid Floors: Stainless Steel

• Foot Shock: 8 Output & Fully Programmable 0-5ma

• Sensing: 8 Photo Beams per side

• Auto-Gate

• Weight: 40 lbs (18.14 kg)

Ordering Information:

HLM100-4 Learning & Memory System - software and 4 system control chassis

HLM100-8 Learning & Memory System - software and 8 system control chassis

HLM1000 Learning & Memory Station

HLM100SP Service Pack

HLMG-R Learning & Memory Grid - Rat

HLMG-M Learning & Memory Grid - Mouse

HAGATE2 Auto-Gate
