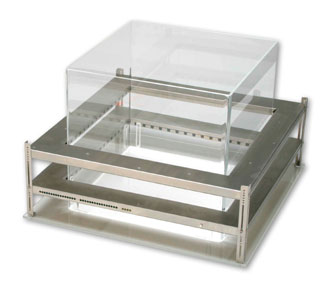

SmartFrame™ Open Field System
The SmartFrame Open Field System is designed with the most advanced features available in today’s market. It uses Windows NT/2000 compatible MotorMonitor software common to most motor activity products with post analysis routines for greater flexibility in analyzing data. The advanced diagnostics use an exclusive 4-level test which runs automatically before each session. Named the SmartFrame because of its onboard intelligent circuitry , this system dramatically enhances validation and diagnostic efforts. An excellent choice for open field work for both rats and mice because of its standard high density beam spacing. Systems are also available for larger animals— please consult factory for details.

On-board diagnostic indicators at each station.

Features:

• Windows NT/2000 platform

• 32 Infrared PhotoBeams (16 x & 16 y)

• Individual start button at each station

• Automatic 4 level diagnostics

• Maximum Stations 16

• Computer Interface - a single RS232 Serial Port

• User Definable Zones - not factory restricted.

• Post Processing Analysis

• Session Templates

• Individual Runtime Clocks for each station

• User selectable output measures.

• Optional Advanced Graphic Comparators - HotSpots , Playback & OverTime

"A Classic Open Field System with advanced features"


Measures:

• X Ambulations

• Y Ambulations

• Fine Movements

• Total Breaks

• Time in Zone

• Entries into Zone



• Pokes into Zone

• Distance

• Time @ Rest

• Time Active

• Rearing

• Hole Pokes

Hardware Specifications:

1. Computer Requirements:

      IBM PC compatible with Windows NT/2000,

      Pentium 133 MHz processor,

      512 MB RAM,

      SVGA monitor,

      50 MB free hard disk space

2. Power: 90-240 Vac 50-60 Hz

3. Overall dimensions: 22.1" (56.13 cm) wide x 22.1" (56.13 cm) long x 15.83" (40.21 cm) high

4. Subject Field dimensions: 16" (40.64 cm) wide x 16" (40.64 cm) long x 15" (38.10 cm) high.

5. Maximum number of stations: 16

6. PhotoBeams: Infrared PhotoBeams with 16 x and 16 y resolution.

7. Housing: Brushed stainless steel.

8. Computer Interface: a single RS232 serial port, regardless of the size of the system!

9. Front Panel: Momentary push button start switch (3 second lock out.) Diagnostic LEDS: 32 green activity LEDS. 4 yellow status LEDS: Switch, rearing, normal mode and float mode.

Ordering Information:

HMM100 MotorMonitor software and control chassis

HSF16x16 16" x 16" Beam Open field station

HSF16R Open Field Rearing Frame

HSF16HB Hole Poke Option (consult factory for details)

HMM100-OPT HotSpots Graphic Comparator

HMM200-OPT OverTime Graphic Comparator

HMM300-OPT Playback Module
