Activity Wheel and
Accessories |
Tethered Activity Wheel Systems:
Motorized Tethered Rat Wheel, Model 80860
Tethered Rat Wheel without motor, Model 80860W
Wheel Motor, Model 80860M

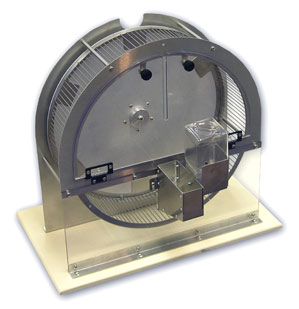

The Tethered Rat Activity Wheel features durable construction from stainless steel and polycarbonate components. The motorized unit uses a non-slip shock absorbing drive belt for forced exercise that is easily removed for free running data collection. The fold down side provides easy placement and removal of the tethered animal. The narrow side slot will accommodate a drug line or electrode cable connected to a standard swivel or commutator (tethers, swivels, and commutators sold separately). These systems also incorporate ad lib access to both food and water to allow for the animal’s well being. A stainless steel waste pan and water bottle with sipper tube are included. An optional brake Model 86070-B1is also available for use with the wheel in a free wheeling setup. The motorized wheel and/or optional brake must be used with the Model 86070 Counter and Controller. Motor and Brake can not be used simultaneously. The Tethered Rat Wheel without Motor may be used with the Model 86060 Counter with Digital Display or Model 86061 Counter for Computer Interface Only.
|
|
Motorized Tethered Mouse Wheel (small), Model 80840
Tethered Mouse Wheel without motor (small), Model 80840W
Wheel Motor (small), Model 80840M
These wheels are scaled down versions of the Rat wheels with comparable features and options, including food and water support and the ability to run voluntary as well as forced sessions. See Technical Specifications below: |
|
Large Rat Activity Wheel System (Standard), Model 80859
Large Rat Activity Wheel System (Large), Model 80859L

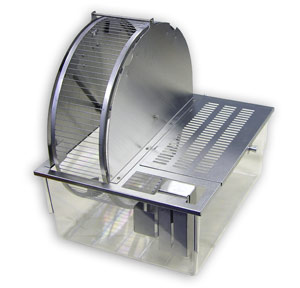

The 80859 Rat Activity Wheel with Living Chamber was designed for long-term circadian rhythm and general activity studies in rats. The 80859L is available for obesity studies with very large rats or studies of other non-rat rodents. Both systems incorporate many features to allow for animal well being and easy maintenance of system components. The living chamber includes support for food and water. The activity wheels feature optical sensors that can be monitored with the Model 86060 or 86061 counter modules, 86056A USB Interface, and AWM Software described below. These wheels may also be used with the optional 86070-B1 Servo Brake and 86070 Counter/Controller. |
 |
| Model 80850 Activity Wheel |
 |
| |
| Model
80852 Living Chamber
|
| Model 80854 Loading Cage
|
|
|
The stainless steel activity wheel measures
activity levels accurately
and easily. The 14" diameter wheel can turn with
less than 10g of force. It is constructed of .032"
stainless steel preventing possible damage. The wheel
has a guillotine-style door to restrict movement out
of the wheel. Living chambers and loading cages are
also available. The wheel can also be outfitted with
an optional stand-alone counter module, or a
computer-only counter module. Dimensions:
14.5"x5.5"x15.5"
|
|
|
 |
This clear polycarbonate living chamber
attaches to the activity wheel, preventing accidental
escape. The chamber has a tunnel access to the wheel and
a stainless steel guillotine door to restrict animal
movement. The size of this chamber allows it to be
"home" for the animal. Dimensions: 18.5"x10.5"x8" |
|
|
|
|
|
Model 80850 Activity
Wheel with Model 80854 Loading Cage
|
|
This small, stainless steel
transportation-only cage attaches to the activity wheel.
The cage provides access to the wheel and has a
stainless steel guillotine door to restrict animal
movement. Dimensions: 10.25"x6.25"x6.25" |
|
gd
Download a bibliography of research using our activity
wheels
|
|
| Model
80820 SINGLE ACTIVITY WHEEL CHAMBER SYSTEM FOR
MICE
|
|
This
Single Activity Wheel Chamber System (model 80820) was
designed for long-term circadian rhythm and general
activity studies. The chamber incorporates many
features to allow for animal well-being and easy
maintenance of system components. The chamber includes
food and water support and includes free access to the
activity wheel. The activity wheel can be monitored by
one of our optional counter modules.
|
| Features: |
- Uses 9.3" x 13.9"
x 7.7" clear polycarbonate cage
- Stainless steel top cover
lays flush onto polycarbonate cage
- All components are secured
to top cover for one step removal
- Feeder and water bottle are
attached to top cover allowing for easy
access
- Feeder has sighting slot on
back to view feed level
- Removable lightweight
5" diameter anodized aluminum wheel is
easy to clean and maintain and is run on two
Rulon bearings
- Equipped with external
mounting bracket for mounting of an optional
electronic counter
- Removable stainless steel
vented access hatch allows for easy access
to the animal
- Complete chamber can be
easily disassembled for cleaning
|
|
|
Specifications: |
| Dimensions: |
9.3"
x 13.9" x 7.7" |
| Weight: |
3.0lbs. |
| Wheel Diameter: |
5.0"
ID |
| Run Distance: |
0.40
meters/revolution |
|
|
|
counters Model
86060 Activity Wheel Counter
|
 |

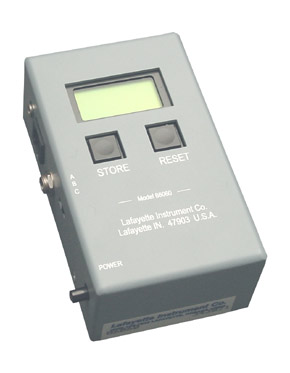

The Activity Wheel Counter Model 86060 is used to monitor total revolutions only from a small number of any of the previously described wheels as well as existing Single Rat Activity Wheels Model 86043. It has also been adapted to wheels provided by other manufacturers (sensors sold separately). The Activity Wheel Counter Model 86060 provides standalone operation with a 12V power pack with battery backup and an LCD display. When battery backup power is used, battery life is two days.
This unit may be connected to the Model 86056A USB Interface with optional cables 86051-7 or 86051-14; however, in most computerized applications the 86061 Counter is recommended. |
|
The Activity Wheel Counter
Model 86060 provides standalone operation with a 12V
power pack with battery backup and an LCD display.
When battery backup power is used, battery life is two
days. |
|
Specifications: |
| Power: |
12VDC power pack |
| Battery Type: |
(2) 2/3A Lithium 3VDC |
| Battery Life: |
48 hours of back-up
life, un-used life is 5 year |
| Total Revolutions: |
Unlimited - counter rollover value at 9,999,999 |
| External Interface: |
Universal Serial Bus (USB) |
| Dimensions: |
2.5" x 4.3" x 1.5" |
|
Weight: |
9.6 ounces |
|
Model
86061 Computer
Controlled Activity Wheel Counter
|
|
 |
Description:
The 86061 Activity Wheel Counter is recommended for all computer interface installations that do not have motors, brakes, or other auxiliary items to control. Input is obtained from the optical sensor supplied with all Lafayette Instrument Co Activity Wheels. Power is obtained from the Model 86056A USB interface. The counter/animal ID is stored on each unit so that wheel connections can not be accidentally changed. The revolution count is stored in the counter memory and may be polled by the computer at any time. Data is still obtainable even if a computer crashes as long as power is maintained at the interface (UPS Power backup recommended for critical studies). This unit is supplied with a 7’ connection cable. Fourteen foot connection cables may be ordered separately.
|
|
Specifications: |
| Total Revolutions: |
Unlimited - counter rollover value at 9,999,999 |
| External Interface: |
Universal Serial Bus (USB) |
| Dimensions: |
1.7"
x 3.4" x 1.5" |
|
Weight: |
4.5
ounces |
interfaces |
|
| Model
86056A Activity
Wheel Monitor Starter Interface |
|
|
The Activity Wheel Monitor USB Interface Model 86056A may be used with Activity Wheel Counters 86060 and 86061, as well as with Model 86070 Counter/Controller. It replaces both the 86056 Serial Starter Interface and the 86057 Serial Expansion Interface. It is no longer necessary to daisy chain expansion boxes to the starter interface. Each interface can connect directly to the computer.
Connect up to 15 wheel counters to a single interface and up to 8 interface units to a single computer with high-speed USB ports. Any powered USB hub may be used as needed. The maximum data collection capacity of the AWM Software is 120 wheels. The Model 86065 AWM Software package must be ordered separately. Upgrade pricing is available to existing users of older software.
|
|
|
|
Specifications: |
| Power: |
12VDC
Supply (Included) |
| #
of Counters: |
15 |
| External Interface: |
RS-232C
interface to computer 19200 baud, no parity, 8
data bits, 1 stop bit |
| Dimensions: |
3.9"
x 9.0" x 1.6" |
|
Weight: |
1.6lbs. |
|
|
Model
86057 Activity Wheel Monitor
Expander
Interface
|
|
|
|
|
Specifications: |
| Power: |
12VDC
Supply (supplied by Model 86056) |
| #
of Counters: |
15 |
| External Interface: |
RS-232C
interface to computer through 86056 interface
19200 baud, no parity, 8 data bits, 1 stop bit |
| Dimensions: |
2.3"
x 9.0" x 1.7" |
|
Weight: |
1.2lbs. |
|
|
Activity Wheel Counter, Model 86070
The Model 86070 Activity Wheel Counter/Controller is required for all applications of motorized wheels, brakes or the control of other auxiliary devices. Like the 86060 and 86061 counters it also uses an optical sensors to detect the total revolutions from any Lafayette Instrument Co Wheel. Power is obtained from the Model 86056A USB interface. The counter/animal ID is stored on each unit so that wheel connections can not be accidentally changed. The revolution count is stored in the counter memory and may be polled by the computer at any time. Data is still obtainable even if a computer crashes as long as power is maintained at the interface (UPS Power backup recommended for critical studies). This unit is supplied with a 7’ connection cable. Fourteen foot connection cables may be ordered separately.
|
 |

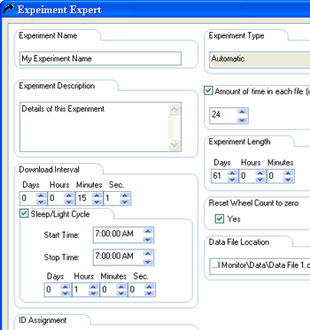

ACTIVITY WHEEL MONITOR SOFTWARE Model 86065
AWM Version 7.7 is an example of a great product being made even better. This version was written to support the new USB wheel interface, model 86056A, any device (motor, brake, aux.) that can be controlled via the 86070 Counter/Controller, and all new forced exercise/walking beds with built in USB interface. At the same time it is still compatible with all serial port interfaces currently. Just a few of the new features and improvements are highlighted below. Contact Lafayette Instrument Co for new equipment purchase or existing equipment upgrades. |
 |
|
|
|
|
|
|
|
|
