| Operant
Cages |
|

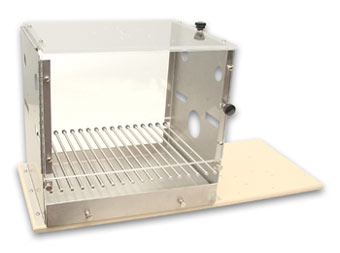

| Model
80003 Basic Operant Chamber |
| Model
80003NS Operant Chamber with Non-shock Floor (not shown) |
| Built
for long-lasting durability and easy cleaning, our
front/top-loading operant chamber is constructed of .032"
stainless steel and .25" polycarbonate.
|
| The base is made of high density
polyethylene that is stain- and scent-resistant. This cage is prepunched to handle 4 press bars, 4 stimulus lights, a pellet
dispenser and a liquid dispenser. The top will accommodate an
omnidirectional lever, and the removable floor is made of shockable
grid rods. The non-shock floor for Model
80003NS is made of stainless
steel. Side and top panels can be customized to satisfy your
needs. Dimensions: 8.5"x8.5"x11" |
 |
|
|
|
|
fgg

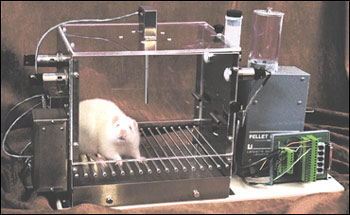

Model
80003 Operant Chamber
with the following
accessories: |
 |
| (1)
80209-45 - 45mg Pellet Dispenser w/ Stand |
| (1)
80201 - Liquid Dropper |
| (1)
80111 - Omni Lever |
| (3)
80110 - Standard Press Bar |
| (4)
80221 - Stimulus Lights |
| (1)
80115 - Retractable Lever |
| (1)
81409 - I/O Module |
| Model
80005 Pigeon Operant Chamber |
| Model
80123 Pecking Key with 3-Color Display |
| Model
80125 Standard Pecking Key |
| Model
80205 Grainfeeder |
|
| Built
to the same rugged standard as our Basic Operant Cage, the Pigeon
Operant Chamber, is constructed of .032" stainless steel,
and .25" clear polycarbonate. There are 23 stainless steel
grid rods .1875" in diameter and are spaced .50" apart.
The base is made of high density polyethylene that is stain-
and scent-resistant. This cage can be equipped with 3 pecking
keys and a grainfeeder. The optional 3-color pecking key can
display red, green and white. Dimensions: 12"x12"x12.5" |

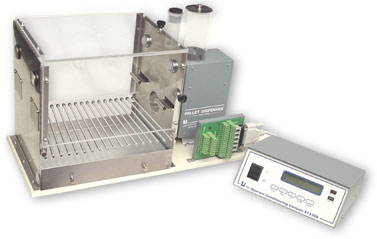

| 84025
Model 84025
Complete Learning System
|
| The
Lafayette Learning System is your complete system for teaching
operant conditioning. This system includes a four-lever cage
with shockable grid floor, two press bars, an omnidirectional
lever, two stimulus lights, a pellet dispenser, and a liquid
dispenser. Also included is the easy-to-use conditioning console
complete with 13 preprogrammed schedules. Dimensions: Cage-12"x12"x12.5"
Conditioning Control - 12"x8"x7" |
 |
|

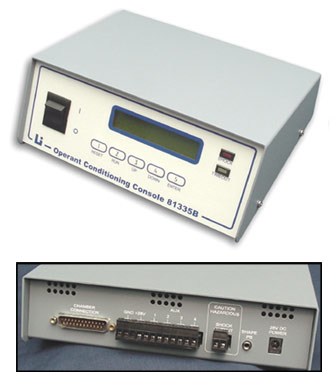

Model 81335B Operant Conditioning Console
|
| The 81335B
Operant Conditioning Console is a fully integrated animal
learning control instrument used for laboratory studies. All
schedules can be easily programmed and implemented in a variety
of environments. Manual shaping activation and student
participation is also provided. |
The 81335B has the capability
to be used with the following devices:
-
Pellet Dispenser
80208
-
Liquid Dispenser
80201
-
Air Stimulus 80108
-
4 Press Bars 80110
-
4 Control Stimulus
Lights 80221
-
4 Control Stimulus
Tones 80223
-
4 Auxiliary Outputs
(refer to Auxiliary Output Control)
|
 |
| 9-Hole
Box for Rat and Mouse |
 |
| Our
well established rat 9-hole box (cited in over 60 published papers)
has now been further developed and refined to make it suitable for
mouse operant studies. It has also been redesigned to be easily
maintained and cleaned.
The mouse
9-hole box is the only mouse operant chamber with associated
published data for an attentional task for mice. |
| The
task – the serial 5-choice
reaction time task (also available in monkey CANTAB) - is a test of
sustained and selective attention, which has been well characterized
in the rat and has shown clinical validity in a variety of settings,
including attentional deficits in Alzheimer's disease patients.
The serial 5-choice
reaction time task forms the first in what is expected to be a
growing set of operant based tests in mice, allowing the
exploitation of molecular genetics methods in unraveling the genetic
contribution to complex psychological and behavioral processes. |
| |
|
|
| Operant
Cage Accessories |
| Model
83015 Sound Attenuation Chamber |
 |
| Constructed
of aluminum, the new Sound Attenuation Chamber is used to isolate
animals from unwanted outside stimuli that could interfere with
testing results. The chamber has a slide-out tray for easy removal
of the cage, and is equipped with a house light, circulating
fan and an observation window. Inside Dimensions: 26"x18"x18" |
|
er
|
|
Model 80209-45 - 45mg Pellet Dispenser w/ Stand
This 45mg Pellet Dispenser‚ uses the
latest design features to provide consistent and reliable pellet
delivery. It can easily be converted to other pellet sizes‚ and
made even more reliable with an optional pellet drop detector.
It is supplied with a short length of tubing for easy connection
to a variety of receptacle or reward areas. The support stand
or base footprint measures approximately 3.8" x 4.7".‚ The
dispenser has been designed and extensively tested for use with
most popular brands and sizes of food pellets. The dispenser is
supplied with a selector disk suitable for 45mg pellets as
standard, alternative disks suitable for 14, 20 and 190mg
pellets are available.
|
|
| Model
80110 Press Bar
Stainless
steel construction (.032" thick) ensures long-lasting reliable
operation. A micro switch is used to sense a lever press. The
force required to move the bar is factory calibrated to be less
than 10gm and is field adjustable via counterbalance washers
located on the back. Movement required to activate the lever
switch is 3mm. |
 |
| Model
80201 Liquid Dispenser This
drop-type liquid dispenser holds up to 65cc of liquid in a graduated,
calibrated closed reservoir. The amount of liquid dispensed
can be easily adjusted via the control box, and works off of
a standard 28V DC power source. Dimensions: 4"x2"x1.5" |
 |
| |
| Model
80115 Retractable Lever
The
retractable lever features a smooth running motor to ensure
quiet, reliable extension and retraction of the lever. Control
of the lever extension and retraction is now accomplished with
one output line. The lever activation is monitored with one
input line. This simplifies the wiring by reducing the number
of external connections. |
|
| Model
80111 Omnidirectional Lever
Mounted
to the top of the cage, this lever records responses via rod
deflection in any direction. The stainless steel rod is 4.75"
in length and is .25" in diameter.
|
|
|
|
Operant Cage
Accessories |
| Model
15800 White Noise Package This
package includes the control, a 7-watt amplifier, and 4 speakers.
It features a 31-stage pseudorandom noise generator at 20 to
20,000Hz, filtered to remove square wave spikes. |
 |
|
Model 15800C White Noise Control The
White Noise control has a 7-watt amplifier and features a 31-stage
pseudorandom noise generator at 20 to 20,000Hz filtered to remove
square wave spikes.
|
| Model 80221 Stimulus Light
This
light features a large, 1" white frosted lens for distinct
CS presentations, and works off of a standard 28VDC power source. |
 |
|
Model 80223 Sonalert
The
Sonalert provides a 2,800Hz tone at 80dB for use as an auditory
stimulus. Amplitude can be adjusted by varying the voltage
supplied. |
 |
| Model
83619 28 Volt Power Supply This
4A power supply will operate up to 4 operant cages. Multiple
power supplies can be used to increase operations. Short circuit
protection is provided by internal current
foldback circuitry. Dimensions: 12.75"x9.75"x5.5"
|
 |
| Model
58011A Photocell Kit This
infrared system uses a separate source and receiver with a range
of up to 12’. A five-way binding post provides connection
to the device. An external DC power source between 10 and 30V
is needed for the device. The output can be configured as either
a normally open or closed switch. The open collector transistor
can switch up to 30VDC at 100mA max.
|
 |
| Model 81413 Basic Photocell Kit
Using
the same infrared sensors as Model
58011A, this unit may
be easily interfaced with the ABET system. It uses a separate
source and receiver with a range of up to 12’.
An external DC power source between 10 and 30V is needed for
the device. The output from the device is a normally open switch.
The open collector transistor can switch up to 30VDC
at 100mA max. |
| Model 82400ss
Master Shocker Supply
This
constant current shocker features two output levels 0 to 1mA
on the front and 0 to 5mA on the back panel. Line voltage required
is 105/125V AC and current regulation is 3 percent for a 50kOhm
change in subject resistance. Grid Harness Model
80001GH is used to connect
the shocker to the operant cage. Dimensions: 10"x7"x5.5"
|
 |
| Model
82404ss Master Shocker with Scrambler This
model features either a direct 0 to 5mA output, or a silent
neon scrambled constant 0 to 1mA with zero crossover. Line voltage
required is 105/125VAC and current regulation is 3 percent for
a 50kOhm change in subject resistance. The voltage regulator
limiter prevents outputs from rising above 1600V at no load.
The interrupter pulses the shock output within a 1-second interval,
(5-100% of 0.05-1 second adjustments). Direct output from the
5-way binding post is a bipolar 60Hz sine wave. Grid
Harness Model
80240A is used to connect
the shocker to the operant cage. Dimensions: 19"x7"x6"
Model
80240A is used to connect
the shocker to the operant cage. Dimensions: 19"x7"x6"
Model
80240A is used to connect
the shocker to the operant cage. Dimensions: 19"x7"x6"
|
 |
| Model 58006
Constant Current Shocker
This
simple unit delivers up to 1mA of current to any subject 100,000
Ohms or less. Line voltage required is 105/125V AC. Current
regulation is 2.5% for a 50kOhm change in subject resistance.
Dimensions: 6"x5.75"x4.75"
|
 |
|
Model 58020 Neon Grid Scrambler
This
device can be used with any of our shocker units. Noiseless
scrambled shock is provided for up to 2mA. Use Grid Harness
Model
80240A to attach to the
operant cage.
Dimensions:
6"x6"x4.5"
|
 |
|
|
|
|
|
|
|
|
|
