Slice Chambers for Biochemistry
-
(Interface and Submerged Type) Model 745 Series (B)
|
|
-
Submerged
mode (Oslo type)
-
Interface
mode (Haas type)
-

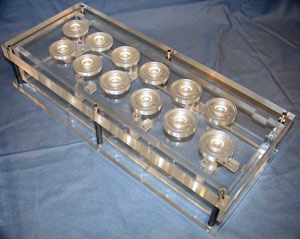

Single,
Dual, Quad and Hex Chambers
-
Compact and
Modular
-
Laboratory
Tested and Proven
-
Heater /
Controller w dual thermistor feedback
|
(Customer made chamber
shown. Single, dual, quad and hex as standard) |
-
Manufactured from Plexiglas, or,
for pharmacological or toxicological studies chemically
inert p.t.f.e. (Teflon®) to avoid adhesion of drugs.
-
A high density of multiple chambers is
available on the biochemistry chambers compared to those for
electrophysiology where ergonomic space for
micromanipulators is required.
-
The one, two, four or six
channel chambers can be used either in the classical
submerged [Oslo type] or one, two and four channel chambers
in the air/fluid interface [Haas Type] with humidified
atmosphere above the tissue slices
-
To convert from submerged to
interface type, simply exchange the chamber top plate.
-
Heated water bath has a low
noise heating element and gas tube to prevent oxygen loss
from perfusate solution.
-
Holding chamber for incubation
of slices until transfer to experimental chamber
-
Stable Temperature control by
dual thermistor feedback from water bath and slice chamber
|

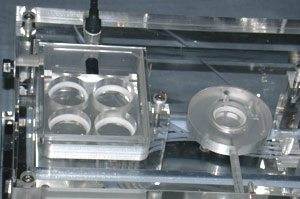

Submerged
Chamber & Holding Cahamber |
|
-
Predictive algorithms
[proportional integral derivative] gives very close control
of to +/- 0.1 Celsius
-
No electromagnetic noise
emission from the DC power source.
-
Temperature feedback from 2
thermistor probes, one can be placed in the chamber to check
temperature, the other is permanently embedded with the
perfusate tubes in the body of the chamber.
-
Digital and analogue data
outputs are available
*Also see Section on Temperature
Controller |
|
