Specifications:

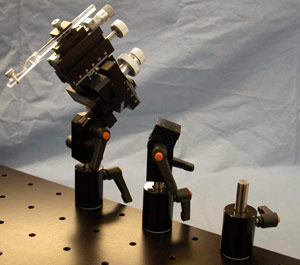

The MM 33 is a
compact micromanipulator for manual movement in
three axes (X,
Y, and Z). The scales mounted on its guide ways allow read off of the
coarse adjustment with an accuracy of 0,1 mm. The additional fine
adjustment is operated by turning the micrometer screw, the read off
accuracy is 1/100 mm.
Since all
control knobs are mounted in line on the rear (not on the side), a
number of user friendly MM 33 manipulators can be set up right next to
one another.
For the
purpose of avoiding that the Z-axis will descend when working with
weighty loads (drift), there is an optional break (Z-axis stop)
available.
| Travel range:
|
|
|
X-axis |
37 mm |
|
Y- axis |
20 mm |
|
Z-axis |
25 mm |
| fine
adjustment |
10 mm |
| |
|
|
Weight : |
650 g |
