'Slice Workstation' Multichannel Observation Systems

Model 746 series

Description:

The Campden Instruments’ 745-ICS Slice Workstation is intended for the simultaneous evaluation or observation of either 4 or 8 slices in submerged or interface type chambers.  It has been designed specifically to match Campden’s range of slice chambers. Details of the slice chambers are available on request.

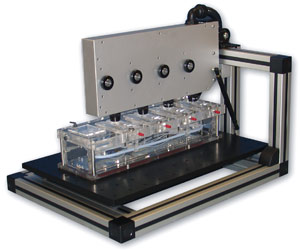

The unit comprises a support frame upon which is mounted an anti-vibration table and camera assembly.

The slice chamber – available separately from Campden – is mounted on the anti-vibration table under the camera assembly (two camera assemblies for the 8-slice version). The camera assembly houses 4 ccd colour cameras each of which is individually adjustable for focus. The camera assembly can be swung upwards away from the chamber for easy access to the chamber. In its raised position the camera assembly is supported by a gas spring strut. In its lowered position it is held in place by a spring latch.
The cameras are connected to a suitable power supply and quad processor. Output from the quad processor is to a video monitor and/or video recorder or computer.


*Additionally, a range of products for mounting micromanipulators to the anti-vibration table is available, as are a range of micromanipulators, electrodes and filter amplifiers.

Specifications:

Weight:	4 Channel system - 26Kg (frame, table & camera assembly)
Camera system:	4 x Colour camera 1/3” CCD sensor, 320K pixel PAL,
Video Output:	1.0V p-p Composite video/ 75 Ohms BNC. 12V DC
Camera pitch:	100mm nominal
Lens:	C/CS mount 16mm with 10mm spacer
Field of view:	6mm x 5mm nominal
Magnification:	Nominal 50x using 38cm TFT monitor with 640 x 480 (x RGB) pixels
Table size:	600mm x 400 mm, 96 holes M8 on 50mm x 50mm pitch
