Visual Patching and Imaging Chamber       Model 7800 Series

Description:

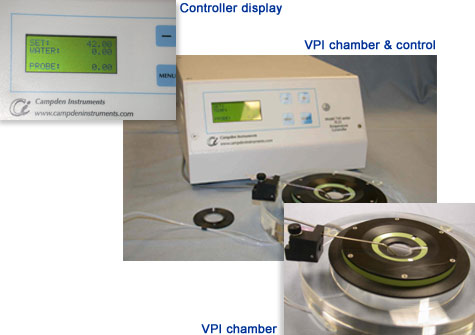

The Chamber

• Just put it on the microscope stage, plug in the controller, connect the tubing and switch it on

• Objective lens heater plugs into controller to provide unobtrusive control of the environment above the chamber

• Low profile for easy access of electrodes under the heated objective lens when mounted on upright microscopes.

• No electromagnetic noise emission from the DC power source.

• Annular ring adapter to fit all types of upright and inverted microscopes

• Adapts to 22mm coverslip or 35mm petri dish

• Laminar flow of fluids across the centre of the chamber

• Chambers are coated  with chemically inert p.t.f.e. (Teflon®) to avoid adhesion of drugs.

• Gas inlet through heat exchanger into chamber for hypoxia studies, hydrophobic p.t.f.e. resists flooding into gas inlets.

• Unique design of suction capillary ensures a steady state of flow and a mill pond smooth surface in a shallow pool of 1mm depth.

• Ag/AgCl reference wire is simply placed within the chamber

• Vented lid seals the chamber for hypoxia studies

The Temperature Controller

• Predictive algorithms [proportional integral derivative] gives very close control of temperature to +/- 0.1 Celsius

• Configurable alarms for temperature envelopes

• No electromagnetic noise emission from the DC power source.

• Includes objective lens heater

• Temperature feedback from 2 thermistor probes, one can be placed in the chamber to check temperature, the other is permanently embedded with the perfusate tubes in the body of the chamber.

• Digital and analogue data outputs are available.

*Also see Section on Temperature Controller

Applications:

• Electrophysiology

• Imaging

• Including studies with hypoxia

Peristaltic Pumps:

Our ‘Smoothflow’ range of 2,4 and 8 channel peristaltic pumps feature microprocessor speed control of the high-torque stepper motor and 10 rollers to ensure that the flow rates are smooth and reproducible.

*See the section on ‘Smoothflow’ Peristaltic Pumps

Micromanipulators:

Easily operated with one hand, the ergonomic design has x,y and z controls in the same plane. This manual micro-manipulator features a highly stable movement from it’s high-precision stable cross-roller bearings with good longevity giving you consistent accuracy of placement for years to come. Our stable clamp system is easy to position and mounts to our stress relieved anti-vibration plate which can be mounted onto simple passive rubber mounts or active anti vibration mounts to your requirements.

*See section on Micro-manipulators and mountings
